 Breast Expresser
What is an Expresser? How does it work?
The Whittlestone Breast Expresser represents a true innovation in the technology of breastfeeding support. The Whittlestone Breast Expresser provides a gentle pulsating massage action to the nipple area that encourages the expression of more breastmilk with less suction pressure. This makes breastmilk expression more efficient, comfortable and enjoyable than using traditional breast pumps that harshly tug at the nipple area.
 The Whittlestone story began in 1967 when Dr. Walter Whittlestone, a noted scientist and lactation physiologist from New Zealand, recognized a need for a comfortable and painless alternative to "suction style" breast pumps.
He developed an entirely new device called an "Expresser" which used a gentle massaging action to more naturally express milk from the breast. The Expresser's revolutionary breast cups incorporated ultra-soft liners that gently and rhythmically massaged the breast to stimulate milk flow.
In 1998, a U.S. based research group brought the Expressers to America for examination by selected lactation consultants and biomedical engineers. The Expressers were judged to be vastly superior to any "suction style" breast pump currently available.
Dr. Whittlestone's original design has been re-engineered in the U.S. to satisfy and surpass the ergonomic requirements of the modern market. Ultimate comfort, gentle massage and unmatched performance at the breast make the new Whittlestone Breast Expresser the product of choice for mothers and lactation professionals who understand the importance of breastfeeding.
The Whittlestone Breast Expresser is supplied with an instructional video and manual showing how to disassemble, clean, reassemble and use the Expresser.
$350 List Price--$297.50 at Mommy Gear
Whittlestone Breast Expresser--Plus FREE
U.S. Ground Shipping & How To Talk To Your Employer About
Breastfeeding Brochure!

FREQUENTLY ASKED QUESTIONS ABOUT THE WHITTLESTONE BREAST EXPRESSER
1. Is the Whittlestone Breast Expresser quick and easy to clean?
Yes. Both the Instruction Manual and Quick Reference card have a "
Quick Wash" section that shows how to clean the Express Kits in less than 30 seconds.
2. What is the suction level?
With Whittlestone, it is not about suction only - as with other pumps. A low level of vacuum (approximately 40 to 100 mmHg) is combined with gentle compression to stimulate the most comfortable expression of milk flow.
3. How many times does it cycle?
Approximately 52 Cycles Per Minute.
4. Why 52 CPM?
This is where the expresser operates most effectively and comfortably.
5. What is the Whittlestone warranty?
The Whittlestone Breast Expresser, has a 3-year warranty. Call Mommy Gear at 1-888-624-GEAR or Whittlestone Customer Service toll free at 1-877-608-MILK for details.
6. Will the Express Kit accept all nipple sizes?
Yes.
7. Will it be effective on women with inverted nipples?
Yes. However, there will always be exceptions.
8. How much does the complete Breast Expresser weigh?
Approximately 7 lbs for the Breast Expresser and 8 lbs. for the Hospital Expresser
9. How many bottles come with the expresser?
There are six bottles included with each Breast Expresser. Two attached to the Express Kits with 4 extra.
10. Have any Moms complained about pinching?
No
11. Have any Moms complained about pain while using the Expresser?
No
12. Does the Expresser automatically cycle?
Cycling principally refers to the periodic relief of applied suction necessary to the use of all traditional suction-based breast pumps. Whittlestone's incredible new technology makes any kind of cycling - automatic or not - a thing of the past.
(Full Instructions Shown Below)
$350 List Price--$297.50 at Mommy Gear
Whittlestone Breast Expresser--Plus FREE
U.S. Ground Shipping & How To Talk To Your Employer About
Breastfeeding Brochure!

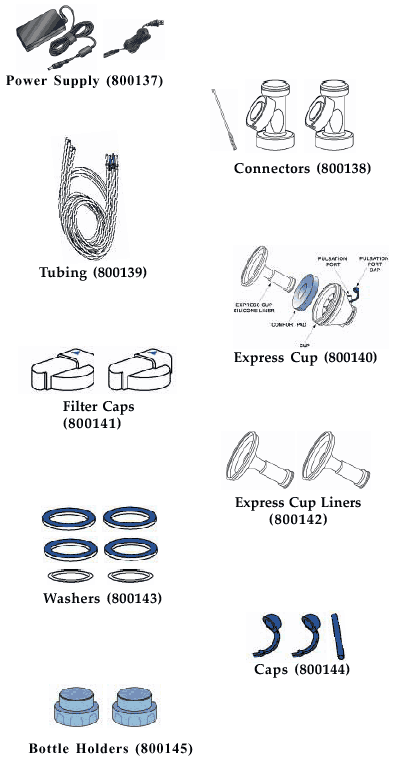

Items included with your Whittlestone Breast Expresser
 | 2 Express Kits
| Motor
| Tubing*
| 2 Cooler Packs
| 4 Extra Milk Collection Bottles With Covers
| Power Supply
| 2 Bottle Holders/Cup Covers
| Cleaning Brush**
| Extra Filter Cap**
| Extra Blue Washer**
| Blue Vacuum Port Cap (allows for single expressing)**
| Instructional Video
| Instruction Manual
| Carrying Bag |
| | | | | | | | | | | | |
| |
* Tubing comes in sealed polybag.
** Cleaning Brush, Extra Filter Cap, Extra Blue Washer, Blue Vacuum Port Cap, and two Collection Bottle caps come provided in sealed polybag.
Whittlestone Express Kit
| Milk Collection Bottle
| 2 Blue Washers
| Connector
| Filter Cap
| Filter Cap Washer
| Express Cup |
| | | | |
NOTE: The Blue Washers are identical, therefore interchangeable for use. |  |
Express Cup
| Silicone Liner
| Comfort Pad
| Cup
| Blue Pulsation Port Cap |
| | |
|  |
All instructions for the Whittlestone Breast Expresser are demonstrated on the instructional video included with each Expresser. Here is a printed version of the instructions that describes the different components of the expresser and how to care for them.
|
CLEANING INSTRUCTIONS
Click here for printable version here.
Quick Wash
(Recommended after each use)
- Unscrew Bottle.
- Remove Filter Cap by pulling straight up from Connector (See Figure 1) - leave Tubing connected to Filter Cap. NOTE: If milk contacts Filter Cap, remove tubing from Filter Cap and rinse Filter Cap with hot water.
- Remove Express Cup from Connector by pulling straight away (See Figure 2).
- Cover port on Express Cup with attached blue cap. See Figure 3.
- Thoroughly rinse Express Cup and Connector with hot water.
- Air or towel dry before reassembly.
Note: There is no need to remove either of the Blue Washers or the Filter Cap Washer on the top of the Connector.
*For first use, wash in hot water with mild soap
Full Disassembly and Wash
(Recommended at least once per week)
Disassemble as follows:
- Unscrew Bottle.
- Remove Filter Cap by pulling straight up from Connector leave Tubing connected to Filter Cap. See Figure 2. NOTE: If milk has contacted Filter Cap, remove Tubing from Filter Cap and rinse Filter Cap with hot water.
- Remove Express Cup from Connector by pulling straight away. See Figure 3.
- To disassemble Express Cup, gently pinch outside edge of liner at wide end, removing from groove. See Figure 4.
- Locate notch at small end of Express Cup and roll off liner with thumb. See Figure 5.
- Push small end of liner through nipple channel, pulling liner out from wide end. See Figure 6.
- Remove blue Comfort Pad.
- You do not have to remove all three washers. If you do - take care not to lose/ misplace.
- Hand-wash all components thoroughly (Except Filter Cap - See below for *Filter Cap maintenance) with hot water and mild soap. A brush is provided for cleaning channels of connector. Note: Never wash tubing unless milk or water accidentally gets inside.
- Shake off excess water and lay out to dry.
- To clean motor case, spray a non-abrasive, general purpose cleaner onto a cloth and wipe exterior of case only. Do not spray liquid directly on motor case!
*Filter Cap maintenance Always keep Express Kits in an upright position when milk is in the bottle. The filter cap protects the motor from breastmilk overflow. A dry, clean filter cap will insure the Expresser performs at its peak efficiency. If milk contacts the filter material, or if the filter material otherwise becomes soiled, thoroughly rinse with hot water until clean. Do not use any brush or abrasive material to clean filter. Before reassembly of Express Kit, tap the filter cap to be sure all surfaces and channels are free of moisture. The filter material is welded to the plastic cap. Any effort to remove the filter material will destroy it. If filter material is torn, replace with new Filter Cap.
IMPORTANT NOTE: Although all parts of the Express Kit may be boiled and are dishwasher safe, these cleaning methods are harsh and will reduce product life. To insure longevity, it is always recommended to hand wash all plastic and silicone parts with mild soap. We also recommend carrying mild soap in a pocket of the carrying bag for washing away from home. Note: Most offices and public restrooms provide anti-bacterial soaps that may be harmful to babys delicate system.
|
 |
|
Assembly of Express Kit
Make sure all parts are dry before assembly
- Insert Comfort Pad into Cup. Press firmly until evenly seated.
- Push small end of Liner through Comfort Pad and nipple channel.
- Place large end of Cup on a flat surface and fold reinforced portion of liner into groove at small end of Cup. See Figure 7.
- Next, reverse position of cup and fold liner into groove at large end of cup insuring liner is not twisted in nipple channel. See Figures 8 & 9.
- Carefully inspect to insure both ends of Liner are securely attached in their grooves. See Figure 10.
- Make sure a blue Washer is inserted into both ends of the Connector. See Figure 11.
- Hold Express Cup at large end and push into Connector until firmly seated, insuring notch mates to rim slot in connector.
- Screw Bottle firmly into Connector, again insuring that a blue washer is firmly seated between Bottle and Connector.
- Apply Filter Cap Washer onto Connector, insuring it is properly seated in groove at top of Connector.
- To attach Filter Cap, line up the pulsation port with the corresponding hole in the Filter Cap and press firmly in place. See Figure 12 (edge of Filter Cap Washer should not be visible under bottom edge of Filter Cap. If visible -repeat this step).
IMPORTANT NOTE: Always examine assembled Express Kit for firm and proper fit. An airtight fit is essential to proper operation.
How Long to Express?
Double Expressing will produce more milk in the same time and may cut expression time in half. Average expressing sessions will vary per individual. Refer to Use Instructions on page 2. Successful expressing is a learned art and practice sessions are recommended. It is also highly recommended that you drink plenty of water and always remain well hydrated.
When expressing full-time, it is well known that regularly emptying the breast stimulates and maintains milk supply. The Whittlestone Breast Expresser is uniquely designed to mimic this effect.
Breast Expressing Tips:
If breast expressing is difficult for you, try some of these time-tested tips or contact a lactation professional or health-care provider for assistance.
| Use deep breathing techniques to relax and assist with letdown.
| Apply a warm compress to your breast 10 minutes before expressing.
| If letdown is difficult, drink plenty of water or juice before, during and after expressing sessions.
| Gentle circular massaging of the breast prior to expressing will help the natural letdown reflex.
| Get as comfortable as possible, preferably seated with your feet up and your back supported. |
| | | |
Remember to take good care of yourself! Eat a balanced diet, drink plenty of fluids and try to get lots of rest. |
 |
|
Expressing Milk
Instructions for expressing both breasts at the same time
Place Expresser on a flat surface such as a desk or table.
- Remove the Express Kits from the Carrying Bag.
- If necessary, insert tubing into Filter Caps (See Figure 13) blue to blue, clear to clear. Plug opposite ends into Motor blue to blue, clear to clear. Plug 6 cord into Power Supply. Plug opposite end into electrical outlet. Then, plug single prong pin into Motor near ON/OFF switch. Turn vacuum dial clockwise to maximum setting, then back one full turn.
- Turn on the Expresser motor by pressing the on/off switch located on the motor case. The initial start-up sound is normal.
- You are now ready! While holding the Express Kits, center the Express Cups onto your nipples, taking care to make full contact with breasts.
- Be patient. It may take time for your body to get used to an Expresser instead of your baby or the harsh vacuum of a traditional breast pump.
- Adjust vacuum dial for maximum comfort.
ATTENTION: Always operate Expresser with the carrying bag flap OPEN.
When finished expressing milk, turn off the motor. Lean forward and remove the Express Kits from your breasts. Place the Express Kits in the bottle holders, taking care to keep them upright. Next, unscrew and cap the bottles. Place them into the cooling compartment of the carrying bag. Store them in a refrigerator or freezer.
When finished expressing, place all components into Carrying Bag for storage. Always disconnect the tubing from the Motor and the Filter Cap and place in plastic bag provided. Roll tubing to prevent kinking.
Single Breast Expression (2002 model)

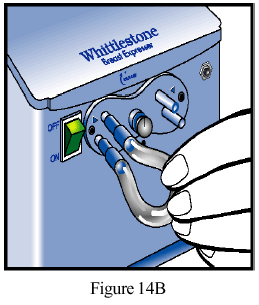

When single expressing, remove Tubing from ports on left side of Motor (closest to the ON/OFF switch); plug exposed ports with Single Express Caps provided. See Figure 14B.
Breastmilk Storage Recommendations
 The following storage recommendations are for healthy, full-term infants using mature milk:
Human breastmilk varies in color, consistency and odor, depending on the mothers diet and type of storage container used. Breastmilk is not homogenized; therefore the fat will separate and rise to the top of the container. Breastmilk may be safely stored by carefully following these guidelines:
* Breastmilk can be stored at room temperature for 6-8 hours (66-72 F/19- 22 C).
* Breastmilk can be stored in a refrigerator for 6-8 days (32- 39 F/0- 4 C).
The Whittlestone Collection Bottles are ideal for short-term storage. For long-term storage, the Milk Storage Bags are another good option.
Freezing Breastmilk
For longer storage, freeze your breastmilk. Frozen breastmilk may be stored in a refrigerator freezer for six months or in a deep freeze (-20 0 C) for up to 12 months. Fill the container only Ύ full to allow room for expansion during freezing. Freeze the milk in 2 oz. to 4 oz. portions. These smaller amounts will thaw quicker. If your baby doesnt drink the entire portion, there is less waste.
When freezing breastmilk, place storage container in middle of freezer not on the door.
To thaw breastmilk in refrigerator, place container in a clean bowl. Use within 24 hours. For quick thawing, place container in a clean bowl of warm water until thawed. Breastmilk should be fed at room temperature.
Do not microwave or boil breastmilk; doing so will destroy live cells and important nutrients. Also, it may heat unevenly and possibly burn your baby during feeding.
Breastmilk may separate with fat rising to the top. If so, gently swirl container to re-mix.
Label container with date and amount of milk collected; be sure to use oldest milk first.
|
|
|
